Compact Rotor ovens for bakeries and patisseries

ROTOR SERIES

Serie Compact

Compact Rotor ovens with low energy consumption and improved cooking performance!

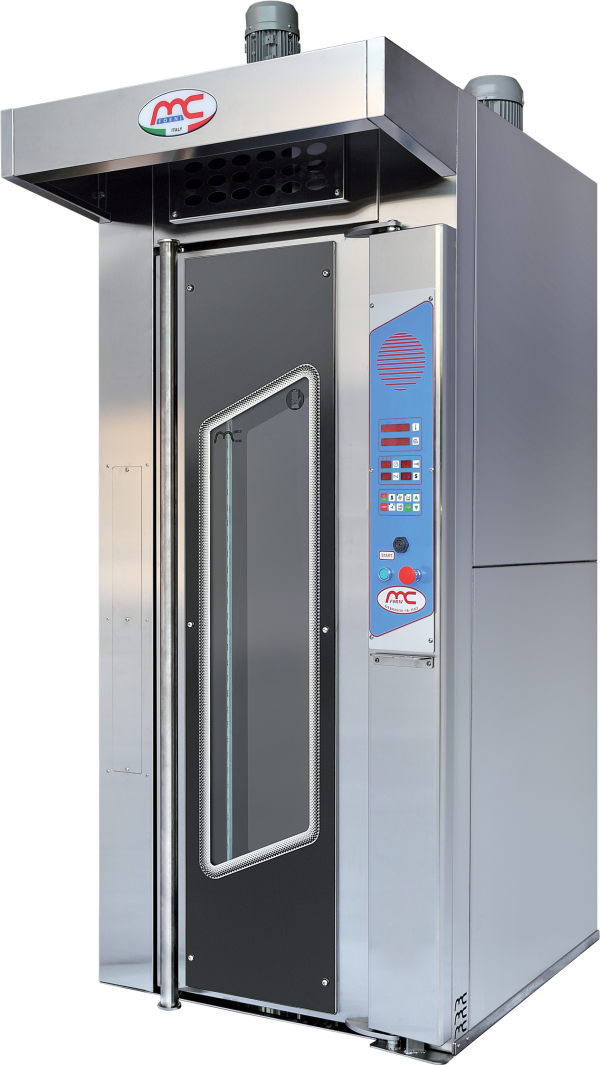

The rack oven MC FORNI COMPACT series are ideal for small and medium bakery and pastry workshops thanks to the reduced footprint.

The COMPACT series oven has less energy requirements than all the competitors..

The COMPACT series ovens were created because, due to the characteristic of having the heat source inside the cooking chamber, it allows energy saving, a smaller footprint and an improved baking performance.

ELECTRIC

Passion for tradition

MC FORNI ovens are made completely of stainless steel. Steam extraction hood with suction motor included and removable suction grille for easy cleanning the steam exhaust valve area.

The electric powered ovens require only one chimney for vapors (removable with a steam blast OPTIONAL). Internal illumination of the baking chamber (replaceable from the outside). Trolley included (without trays).

Gaskets

Gasket sealing of the door in siliconic rubber and steel to grant a hermetic seal of the door combined with the doublelocking to ensure a greater seal. Door with double glass and two door hinges designed to detach the door from the gasket without being damaged during the rotation.

Insulation

Composed by a double layer of high density rock wool panels (100kg/m3) ensuring maximum thermal insulation and a long duration.

Control Panels

ELECTROMECHANIC

MC FORNI-NI.MA.MAC. SNC The classic control panel, fully manual. Manual steam exhaust valve.

DIGITAL

MC FORNI-NI.MA.MAC. SNC Programmable weekly self switch-on and automatic switch-off when not in use for a specified time. Manual mode is available or otherwise by creating storable programs with 3 cooking phases plus empty chamber preheating (99 programs memory). For every phase of a program the temperature, baking time and presence or extraction of the steam can be set. Automatic motorized steam exhaust valve. Self-diagnosis detecting eventual faults.

TOUCH SCREEN

MC FORNI-NI.MA.MAC. SNC Programmable weekly self switch-on and automatic switch-off when not in use for a specified time. Manual mode is available or otherwise by creating storable programs with 5 cooking phases plus empty chamber preheating (99 programs memory customizing name and product photos, loaded via USB), “thanks to the pictures it’s possible to employ less specialized staff”. For every phase of a program the temperature, baking time and presence or extraction of the steam can be set. Automatic motorized steam exhaust valve. Self-diagnosis detecting eventual faults.

Scheda prodotto

MODELLO MODEL MODELO MODÈLE	DIMENSIONI ESTERNEEXTERNAL DIMENSIONSDIMENSIONES EXTERNAS DIMENSIONS EXTÈRIEURES			DIMENSIONI TEGLIEBAKING PANS DIMENSIONSMEDIDAS DE LAS BANDEJAS DIMENSIONS DES PANNEAUX DE CUISSON		TEGLIE PER CARRELLOBAKING PANS ON TROLLEYBANDEJAS EN EL CARRO PANNEAUX DANS LES CHARRIOT	INTERRASSE TEGLIEDISTANCE BETWEEN PANSDISTANCIA ENTRE BANDEJAS DIST. ENTRE PANNEAUX	SUPERFICIE DI COTTURABAKING SURFACESUPERFICIE DE COCCION SURFACE DE CUISSON	POTENZA TERMICA INSTALLATATHERMAL POWERENERGÍA TERMICA ENERGIE THERMIQUE		POT. EL CON BRUCIATOREOVEN ELECT. POWER WITH BURNERENERG. ELEC. CON EL QUEMADOR ÉNERG. ÉLEC. AVEC BRÛLEUR	POT. EL FORNO ELETTICOOVEN ELECT. POWERPOTENCIA ELECTRICA PUISSANCE. ÉLECTRIQUE	PESO WEIGHT PESO POIDS	DOWNLOAD SU RICHIESTA
	A (cm)	B (cm)	C (cm)	(cm)	(cm)	n°	mm	mq	kcal	KW	KW	KW	kg	DOWNLOAD SU RICHIESTA
COMPACT 64	99	99	210	40	60	16	93	3,84	–	–	–	21	560	Scheda.pdf
COMPACT 86	135	140	230	60	80	18	93	8,6	–	–	–	35	900	Scheda.pdf
COMPACT 8.10	174	183	240	80	100	18	93	14,4	–	–	–	62	1200	Scheda.pdf

Catalogo completo
