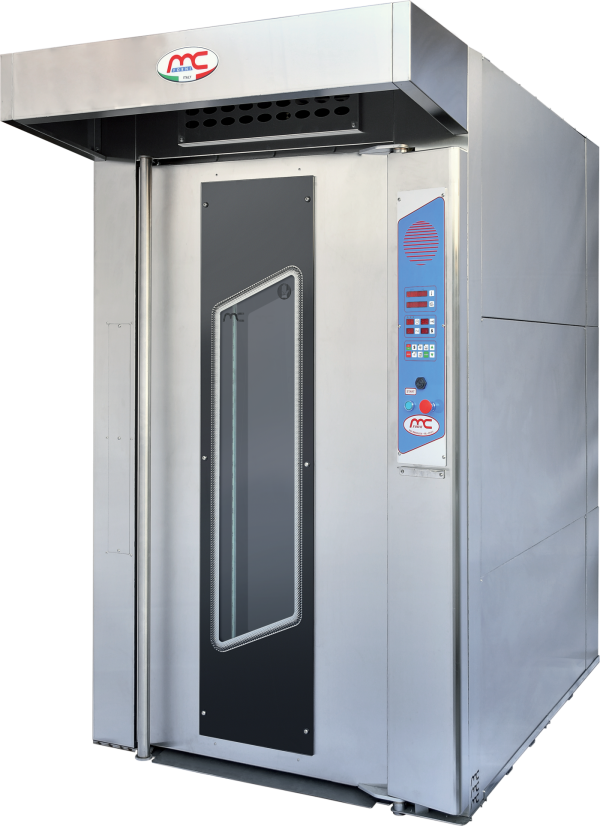

Rotor Industry ovens for medium and large bakeries

ROTOR SERIES

Serie Industry

Rotor Industry ovens for medium and large bakeries and patisseries

he rack oven series MC FORNI INDUSTRY is manufactured for small, medium and large bakery and confectionery workshops, functioning with GAS, OIL, ELECTRICITY or HYBRID.

The INDUSTRY series oven has less energy requirements than all the competitors.

The INDUSTRY series ovens are able to work during very long shifts without giving problems.

The INDUSTRY series ovens are characterized by having the heat source within the baking chamber, allowing energy saving, a smaller footprint and improved baking performance.

ELECTRIC

GAS/DIESEL

HYBRID

Passion for tradition

MC FORNI ovens are made completely of stainless steel. Steam extraction hood with suction motor included and removable suction grille for easy cleanning the steam exhaust valve area.

The electric powered ovens require only one chimney for vapors (removable with a steam blast OPTIONAL). Internal illumination of the baking chamber (replaceable from the outside). Trolley included (without trays).

Gaskets

Gasket sealing of the door in siliconic rubber and steel to grant a hermetic seal of the door combined with the doublelocking to ensure a greater seal. Door with double glass and two door hinges designed to detach the door from the gasket without being damaged during the rotation.

Insulation

Composed by a double layer of high density rock wool panels (100kg/m3) ensuring maximum thermal insulation and a long duration.

Trolley rotation system with universal turnable platform from INDUSTRY 8.10 model.

Trolley rotation system with standard upper hook up to INDUSTRY 88 model.

HEAT EXCHANGER

Built in refractory stainless steels, it enables over 90% efficiency, thus ensuring the consumption reduction.

The ovens of the INDUSTRY series are lifted from the ground in order to create an insulating air passage, which avoids the condensation below.

STEAM GENERATOR

Constructed with stainless steel stacked drawers containing iron evaporator bars heated by the cooking air. These drawers can be easily removed for easy maintenance.

Control Panels

ELECTROMECHANIC

MC FORNI-NI.MA.MAC. SNC The classic control panel, fully manual. Manual steam exhaust valve.

DIGITAL

MC FORNI-NI.MA.MAC. SNC Programmable weekly self switch-on and automatic switch-off when not in use for a specified time. Manual mode is available or otherwise by creating storable programs with 3 cooking phases plus empty chamber preheating (99 programs memory). For every phase of a program the temperature, baking time and presence or extraction of the steam can be set. Automatic motorized steam exhaust valve. Self-diagnosis detecting eventual faults.

TOUCH SCREEN

MC FORNI-NI.MA.MAC. SNC Programmable weekly self switch-on and automatic switch-off when not in use for a specified time. Manual mode is available or otherwise by creating storable programs with 5 cooking phases plus empty chamber preheating (99 programs memory customizing name and product photos, loaded via USB), “thanks to the pictures it’s possible to employ less specialized staff”. For every phase of a program the temperature, baking time and presence or extraction of the steam can be set. Automatic motorized steam exhaust valve. Self-diagnosis detecting eventual faults.

Scheda prodotto

MODELLO MODEL MODELO MODÈLE	DIMENSIONI ESTERNEEXTERNAL DIMENSIONS DIMENSIONES EXTERNAS DIMENSIONS EXTÈRIEURES			DIMENSIONI TEGLIEBAKING PANS DIMENSIONS MEDIDAS DE LAS BANDEJAS DIMENSIONS DES PANNEAUX DE CUISSON		TEGLIE PER CARRELLOBAKING PANS ON TROLLEY BANDEJAS EN EL CARRO PANNEAUX DANS LES CHARRIOT	INTERRASSE TEGLIEDISTANCE BETWEEN PANS DISTANCIA ENTRE BANDEJAS DIST. ENTRE PANNEAUX	SUPERFICIE DI COTTURABAKING SURFACE SUPERFICIE DE COCCION SURFACE DE CUISSON	POTENZA TERMICA INSTALLATATHERMAL POWER ENERGÍA TERMICA ENERGIE THERMIQUE		POT. EL CON BRUCIATOREOVEN ELECT. POWER WITH BURNER ENERG. ELEC. CON EL QUEMADOR ÉNERG. ÉLEC. AVEC BRÛLEUR	POT. EL FORNO ELETTICOOVEN ELECT. POWER POTENCIA ELECTRICA PUISSANCE. ÉLECTRIQUE	PESO WEIGHT PESO POIDS	DOWNLOAD SU RICHIESTA
	A (cm)	B (cm)	C (cm)	(cm)	(cm)	n°	mm	mq	kcal	KW	KW	KW	kg	DOWNLOAD SU RICHIESTA
INDUSTRY 46	99	126	210	40	60	16	92	3,84	25.000	29	2	21	770	Scheda.pdf
INDUSTRY 48	115	146	210	40	80	16	92	5,12	30.000	34	2	21	880	Scheda.pdf
INDUSTRY 4565	115	146	210	45	65	16	92	5,26	30.000	35	2	21	900	Scheda.pdf
INDUSTRY 57	115	146	210	50	70	16	92	5,60	32.000	35	2	24	915	Scheda.pdf
INDUSTRY 6065	115	146	210	60	65	16	92	6,24	35.000	41	2	27	930	Scheda.pdf
INDUSTRY 86 C*	137	179	210	60	80	16/18	100/88	7,68/8,6	43.000	50	2	37	1100	Scheda.pdf
INDUSTRY 86	137	179	230	60	80	18	93	8,6	45.000	52	2	37	1200	Scheda.pdf
INDUSTRY 88	164	209	240	80	80	18	94	11,52	65.000	76	3	55	1800	Scheda.pdf
INDUSTRY 8.10	164	209	240	80	100	18	94	14,4	82.000	95	3	80	1950	Scheda.pdf
INDUSTRY 9.12	182	230	240	90 90	60 120	18+18 18	94 94	19,44	110.000	128	3	95	2450	Scheda.pdf

Catalogo completo
